We show the steps to follow in Linux to connect through SSH to a remote device that is not in the same network.
We show the steps to follow in Linux to connect through SSH to a remote device that is not in the same network.
We are going to consider two devices that are not part of the same network. For example, one laptop in your office and one laptop in your home. In this case, in contrast to the example given in the article: "How to connect through SSH to a device that is in the same network," both devices are connected to different routers. In Fig. 1 we depict these devices. We call them office
and hp
.
![](assets/img/articles/codes/linux/6410740415ded-ssh.png)
Our goal is to connect to hp
using our office
device. Notice that hp
has two users, ortiz and guest, then we are going to connect to each of them. A summary of this article with some extra info appears in the following video:
The steps to follow are:
1. Install SSH server
You have to have admin rights to install SSH server. Install it in the device that you want to access remotely. In our example it is thehp
device and the user with admin rights is ortiz. Then, in its terminal type:
sudo apt install openssh-server
If you think you already installed openssh-server
, then you can check the version by typing:
sudo dpkg -l openssh-server
Further details are given in the article: "How to connect through SSH to a device that is in the same network."
2. Set port forwarding
Type the following in the terminal:
ip route show default
default via 192.168.178.1 dev wlp60s0 proto dhcp metric 600

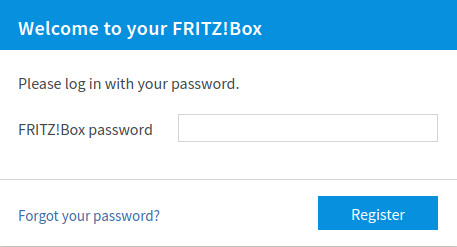

This shows your router IP. In this example it is 192.168.178.1. Type this IP in your browser (Chrome, Firefox, Safari, Edge, or any other). It gives you access to your router login page, see Fig. 2.
![](assets/img/articles/codes/linux/6410740415ded-login-en.png)
To log in, type the password of your router. Keep in mind that this password is different from the password that you use to connect to the internet. Both are likely printed on the back of your router. If you cannot find it, check the documents that came with your router or contact the company that gave it to you. Once you type the password you have access to the dashboard of your router. In the dashboard you need to look for the option port forwarding. Because every router is different I cannot guide you to find this option in yours. In this example, it is in the section port releases, see Fig. 3.
![](assets/img/articles/codes/linux/6410740415ded-release-en.png)
As you can see, the IPv4 of this router is 87.123.243.210. Notice that your router has two IPv4s, or IPs for short, an internal one (192.168.178.1) that is accessed locally (by devices in the local network), and an external one (87.123.243.210) that is accessed globally (by devices on the internet). In the following page: whatismyipaddress.com, you can track the location of any router knowing its external IPv4. In Fig. 3, to add the hp

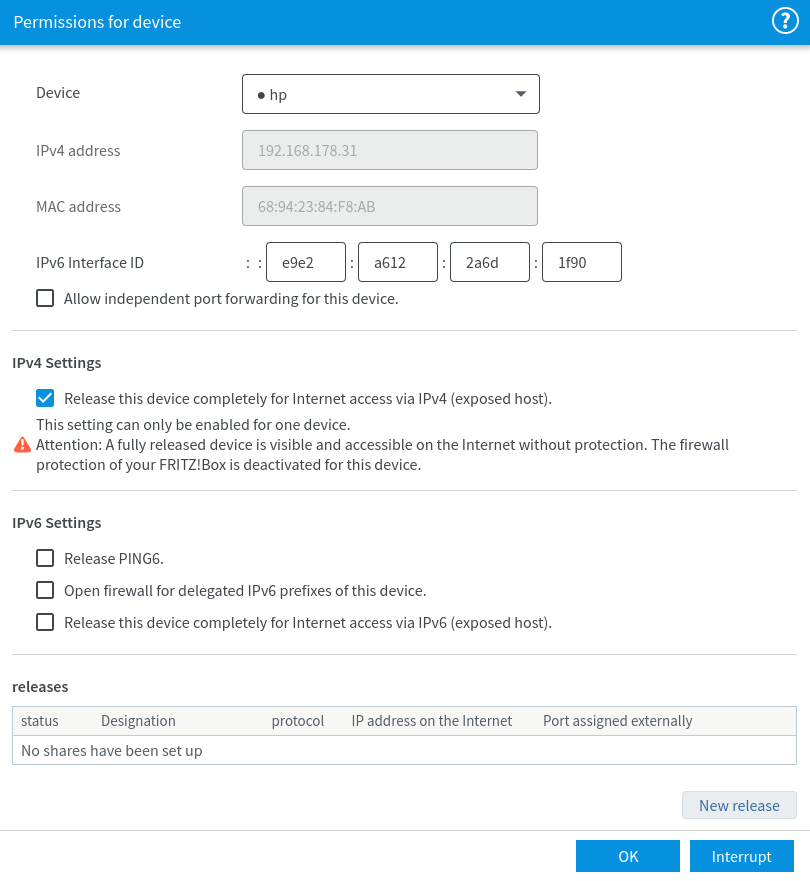

device, click on Add device for sharing. The setup is given in Fig. 4.
![](assets/img/articles/codes/linux/6410740415ded-ipv4-en.png)
As seen, the local IPv4 address of the hp

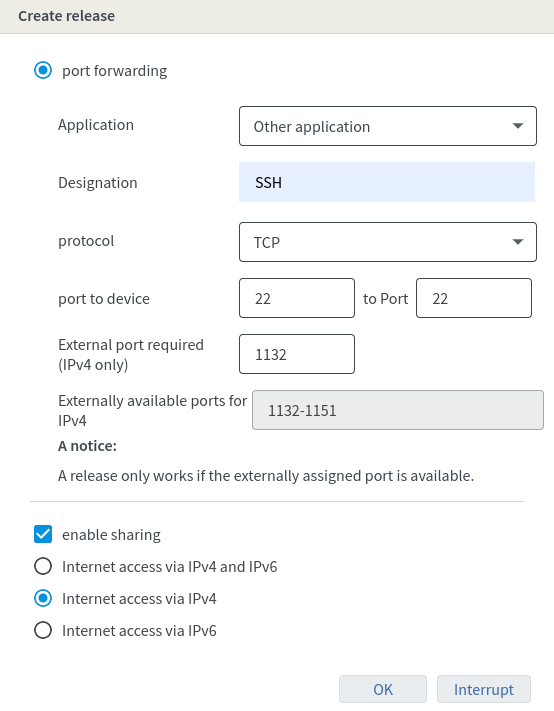

device is 192.168.178.31. In Fig. 4 we have chosen to release the device via IPv4. There is also the option to choose IPv6 (Internet Protocol version 6), but we will stick to IPv4 because it is commonly used in the world. Once the device is set up, we click on New release to configure port forwarding, see Fig. 5.
![](assets/img/articles/codes/linux/6410740415ded-port22-en.png)
In our case, the available external IPv4 ports are 1132 and 1151, We choose 1132. We set an SSH connection, which uses the protocol TCP. We also set the internal port to 22 (the port to device ranges from 22 to 22), which is the default SSH port value. In this sense any information arriving to port 1132 in the router is forwarded to port 22 in the hp
device. In your case you may not need to add all this as your router may be configured to always work with default values; i.e., any information arriving to port 22 in the router will be forwarded to port 22 in the device. Once this is set we click OK.
![](assets/img/articles/codes/linux/6410740415ded-portforwarding-en.png)

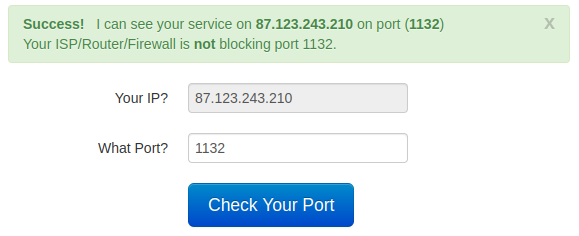

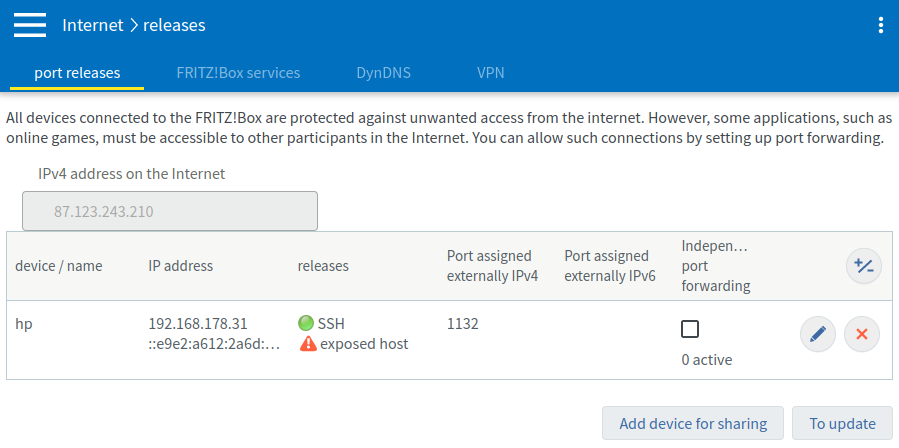

As seen in Fig. 6, in the port releases section, port forwarding is now active. You can test that it is active in the following page: portchecktool.com. The output should show a success message, see Fig. 7.
![](assets/img/articles/codes/linux/6410740415ded-testport-en.png)
If it is not successful you may have a firewall preventing this.
3. SSH from a remote device
To connect remotely to ortiz@hp, in the office
terminal type:
ssh 87.123.243.210 -p 1132
The password of ortiz@hp is requested. If you type the correct password you will be connected to ortiz@hp. To go back to ortiz@office type Ctrl+D
. Similarly, to connect to guest@hp, type the following:
ssh guest@87.123.243.210 -p 1132
The password of guest@hp is requested. If you type the correct password you will be connected to guest@hp. Notice that in this second case we specify the username. In the first case we didn't do it because office
and hp
shared the same name (ortiz).
To conclude, it is worth mentioning that if you connect to your home router, it is likely that it uses a dynamic IP, that is, the IP number changes over time. Therefore, to avoid checking what the current IP number is, it is advisable to consider a DNS (Domain Name System), which will be fixed no matter if the IP changes. To configure it, I invite you to read the article: "How to configure a free domain name for a dynamic IP." Moreover, to avoid continually typing the remote user's password, you can consider the public key authentication, which is explained in the article: "How to connect through SSH with passwords: The public key authentication."
